Areas of application

Symbol chest of drawersFurniture and interior fitting

Product features

Icon plate being cleanedEasy care
Icon with crossed-out bacteria/virusesAntimicrobial
Icon with a glass and a forkFood harmless
Icon with 3 drops of waterLow swelling / moisture resistant
Icon plate with hammerHigh impact resistance
Icon with 2 cloudsParticularly low emission

Areas of application

In all private and public interior application areas in which robustness, long durability, and high hygienic demands are placed on the Duropal Compact Worktop, such as in hotels and restaurants, shops, sanitary areas, schools, sports facilities and swimming pools.

Certificates & labels

Blue Angel DE-UZ 76

The Blue Angel has been the federal government's eco-label for 40 years. Independent and credible, it sets demanding standards for environmentally friendly products and services. The Blue Angel is the orientation for sustainable purchasing.

PEFC certified

PEFC is the largest institution for ensuring sustainable forest management through an independent certification system. Wood and wood products with the PEFC seal originate demonstrably from ecologically, economically and socially sustainable forestry.

Awards

The internationally respected, neutral design and architecture competition Iconic Award from the German Design Council has awarded the Duropal Compact Worktop, grey core, the ICONIC AWARDS: Innovative Interior. This award recognises top innovative achievements that set new impulses in architecture.

Product section

Availability

Formats

Design of
Length (mm)Width (mm)Thickness (mm)Front edgeRear edge
4,10064012ChamferedMilled
4,10095012ChamferedChamfered

Product features

Product standard

  • EN 438-4

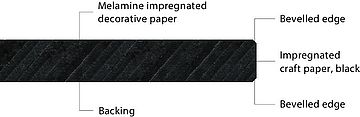

Core material

  • Compact laminate black: Uniform black through-pigmented solid compact laminate core, impact resistant and moisture resistant for applications with high specification demands.

Density

  • Min. 1,350 kg/m³

Reaction to fire

  • Normally flammable
  • D-s2,d0 (EN 13501-1, CWFT conforming to 2003/593/EG)

Formaldehyde emission class

  • E1 E05

Antimicrobial effect

  • Surface with antimicrobial effect in 24 h for interior fit-out and finishes – Test Methodology JIS Z 2801 / ISO 22196

Product safety

  • The decorative surface and the core consists of paper layers, which are impregnated with thermosetting resins. The resins harden completely during the manufacturing process by heat and high-pressure. They form a stable, resistant and non-reactive material.
  • The surface is physiologically safe, and approved for direct contact with food acc. to Regulation (EU) No. 10/2011.
  • This product follows the REACH regulation EC 1907/2006 an article. Following Article 7 it does not need to be registered.
  • We manufacture the panels without the use of halogens, heavy metals, preservatives, wood protectors or organic solvents.

Special

  • You can find comprehensive accessories for our worktop range at www.pfleiderer.com.
  • Depending on the decor and surface texture, slightly different surface visual impressions can result between cut panels viewed from different angles. This is a result of the production methods and does not constitute a quality defect.
  • Especially for large applications, we recommend paying attention to the colour and texture uniformity of the boards and cut products used when further processing and installing and that the production direction is taken into account.
  • The smoother the structure and the the darker the decor, the more sensitive it is to stains.
  • Due to the black core of the material, minor decorative deviations to other products cannot be avoided.
  • For production-related reasons, there may be minor colour variations in the black material core.
  • Decor-structure-combination front side = Decor-structure-combination reverse side
  • Due to the processing (chamfer, grind and saw) slight colour variations of the coloured material core may occur.
  • Subsequent oiling (with suitable cooking oil) of the machined edge can reduce machining and wear marks.
  • Please note that in everyday use, polishing, scratches and shiny spots may occur due to mechanical stress, which are particularly visible on darker decors. This does not represent a quality defect or a restriction of usability. Rather, it reflects the natural ageing of the surface. The product complies with all requirements of EN 438.
  • The uneven edge appearance is due to the structure depth of the texture Solid Granite caused by the product and does not represent a quality defect.
  • With PEFC-certification.

Colour and surface match

  • Decor, structure and core board all influence the final appearance of the end product.
  • Due to the product-specific differences in production technologies, even identical decor/structure/core board combinations can result in slight optical and tactile deviations across different product groups and formats. Such deviations do not constitute a defect.
  • The choice of surface structure in particular has a significant influence on the visual impression, the tactile perception as well as the technical characteristics of the product. Thus, the overall impression of a decor can change almost completely depending on the surface structure. Furthermore, mechanical influences on the product surface can lead to a higher contrast optical perception with dark decors.
  • To ensure that you always achieve the best results with our products and to clarify any deviations in advance, we will be happy to advise you individually.

Product handling

Processing

  • Especially for large applications, we recommend paying attention to the colour and texture uniformity of the boards and cut products used when further processing and installing and that the production direction is taken into account.
  • Sufficient conditioning is required prior to installation and assembly. The premises themselves need to be at the normal climatic conditions in which the material will later be used.
  • We recommend carrying out your own tests depending on the respective application and material requirement.
  • For further information, please refer to our processing recommendation "Duropal HPL Compact / Duropal Compact Worktop".

Machines and tools

  • Can be worked with carbide (HW) or diamond (DP) tipped tools on conventional woodworking machines.
  • For further information, please refer to our processing recommendation "Duropal HPL Compact / Duropal Compact Worktop".

Installation and assembly

  • Sufficient conditioning is required prior to installation. The premises themselves need to be air-conditioned according to the future use.
  • Please ensure that the material is processed and fitted correctly and using the best available technology.
  • For further information, please refer to our processing recommendation "Duropal HPL Compact / Duropal Compact Worktop".

Storage, handling and transport

  • Foreign bodies or impurities in the pallet of sheets can lead to impressions and damage to the surface of the board.
  • For further information, please refer to our processing recommendation "Duropal HPL Compact / Duropal Compact Worktop".

Health and safety

  • Please wear the appropriate personal protective equipment (PPE) when processing and handling.
  • For further information, please refer to our processing recommendation "Duropal HPL Compact / Duropal Compact Worktop".

Cleaning and care

  • The surface can be cleaned with water and gentle cleaning agents. To remove stubborn stains, please observe the recommendations in the data sheet "Cleaning of HPL surfaces" (www.icdli.com).

Disposal

  • Energy recovery is recommended.

Swatches & collection sets

Compact Worktop

Swatches

130 mm x 90 mm
